Vibrating Wire Strain Gauge vs MEMS Sensor for Long-Term Monitoring

In 2016, the Majerhat Bridge in Kolkata showed no externally visible distress before a span collapsed, killing three people — a failure that post-incident investigations attributed partly to undetected long-term strain accumulation in aging structural members. The instrumentation question that follows every such event is not whether to monitor, but which sensor technology can sustain measurement fidelity across decades of thermal cycling, humidity, and creep without drifting beyond actionable thresholds. When engineers evaluate vibrating wire strain gauge vs MEMS sensor for long term monitoring, the answer is rarely simple, and the wrong choice can render years of data unreliable. This post presents a technology-level comparison grounded in manufacturer performance curves, physical principles, and deployment realities relevant to Indian infrastructure projects.

• Vibrating wire strain gauges exhibit inherently low zero-drift over multi-year deployments because frequency output is independent of cable resistance and supply voltage variation.
• MEMS accelerometers and strain sensors offer high sampling rates suitable for dynamic modal analysis but are susceptible to long-term offset drift driven by temperature coefficient mismatches and packaging stress relaxation.
• For embedment applications in concrete — governed by IS 13311 and standard SHM practice — VW gauges remain the dominant technology for static and quasi-static strain measurement beyond five years.
• MEMS sensors are best deployed in hybrid architectures where short-interval dynamic data complements VW static baselines, not as a replacement for long-duration static monitoring.
• Software platforms that ingest both VW and MEMS data streams, applying drift-correction algorithms, are essential for mixed-sensor SHM deployments.

A vibrating wire strain gauge is a transducer that measures strain by detecting the resonant frequency of a tensioned steel wire; as the surrounding structure deforms, wire tension changes, shifting the natural frequency in a relationship governed by f² ∝ T/ρL², where T is tension, ρ is wire density, and L is gauge length — typically 150 mm to 250 mm for embedment types. Because the output is a frequency rather than a voltage or resistance ratio, it is immune to most sources of signal degradation over long cable runs, making it the preferred sensor for VW embedment strain gauge applications in concrete structures.

A MEMS (Micro-Electro-Mechanical Systems) strain sensor or accelerometer uses microfabricated silicon structures — typically piezoresistive bridges or capacitive proof masses — etched at the micron scale. MEMS devices achieve sampling rates from 100 Hz to several kHz, making them well-suited for capturing dynamic events such as traffic-induced vibration, seismic response per IS 1893, and impact loading. Their limitation in long-term static monitoring arises from the physics of silicon piezoresistance: the gauge factor drifts with temperature, and packaging-induced mechanical stress relaxes over months to years, producing a slow offset that is difficult to distinguish from true structural strain.

Published manufacturer datasheets for embedment-type VW strain gauges consistently specify operational lifespans of 10 to 20 years under continuous deployment, with zero-drift figures typically cited at less than 0.1% full scale per year under stable temperature conditions. The full-scale range for most embedment gauges spans ±3,000 microstrain (με), meaning annual zero-drift of 0.1% FS corresponds to approximately ±3 με per year — well within the ±10 με resolution threshold that most SHM protocols require for quasi-static concrete strain monitoring.

Temperature sensitivity is managed through a thermistor integrated into the gauge body, allowing software to apply the thermal correction coefficient (typically 12.2 με/°C for steel-bodied gauges matched to concrete's coefficient of thermal expansion of approximately 10–12 × 10⁻⁶/°C). When this correction is applied consistently through a calibrated structural health monitoring software platform, residual thermal error across a ±40°C annual range — common in northern Indian plains — is reduced to a few microstrain.

Long-term field evidence from dam and tunnel instrumentation programs, including CWC-supervised reservoir projects, confirms that VW gauges installed in the 1990s have continued to return consistent readings decades later, provided cable integrity is maintained and the readout unit is periodically recalibrated. The critical failure mode is not sensor drift but physical damage to the cable jacket or connector corrosion — both preventable through proper installation practice aligned with IS 2720 Part 38 and site-specific protection protocols.

MEMS drift in long-term static monitoring arises from three distinct physical mechanisms. First, piezoresistive gauge factor drift: silicon's gauge factor has a temperature coefficient of approximately −0.1% per °C, meaning a 30°C temperature swing — routine on an exposed Indian bridge deck — introduces a gauge factor error of approximately 3%, which translates directly to a proportional strain reading error. Second, packaging stress relaxation: the epoxy or solder bonds that attach the MEMS die to its substrate creep under sustained load, introducing a slowly evolving offset that can reach tens of microstrain over 12–24 months without active compensation. Third, 1/f (flicker) noise in the signal conditioning electronics accumulates at very low frequencies, degrading the noise floor for measurements taken at intervals of hours or days rather than milliseconds.

Manufacturer datasheets for industrial MEMS strain sensors typically specify zero-offset drift of 0.5 to 2.0 mg (for accelerometers) or 5 to 20 με (for MEMS strain bridges) over a one-year period at constant temperature. In field conditions with diurnal temperature cycling of 15–25°C, effective drift can be two to four times the isothermal specification. For a structure monitored over five years, cumulative uncorrected MEMS drift can exceed 50 με — comparable in magnitude to the strain change produced by moderate structural deterioration, making it difficult to separate sensor artifact from real structural response without a stable reference.

This is not a disqualifying limitation for all applications. MEMS accelerometers measuring dynamic strain at frequencies above 1 Hz — for example, capturing the first three modal frequencies of a cable-stayed bridge span — are unaffected by DC offset drift because modal analysis operates on AC signal components. The problem is specific to long-term static and quasi-static strain monitoring, which is precisely the use case most relevant to infrastructure condition assessment under IRC SP-35 and IRC:114 bridge inspection frameworks.

The table below summarises key performance parameters drawn from published manufacturer datasheets and peer-reviewed instrumentation literature. Values represent typical specifications for industrial-grade sensors in the class used for civil infrastructure SHM.

Note: Cost figures are indicative ranges based on market observation and vary with specification, quantity, and supplier. They are not Geolook list prices.

The most technically defensible approach for long-term infrastructure monitoring is a hybrid architecture that assigns each sensor technology to the measurement task it performs best. VW embedment gauges provide the stable, drift-resistant static baseline — recording slow strain accumulation in concrete piers, abutments, or tunnel linings over years. MEMS accelerometers or dynamic strain sensors capture the high-frequency dynamic signature: traffic-induced vibration, wind response, and seismic excitation per IS 1893 Part 1.

In the RITES 3D Digital Twin and VR Visualization Platform for Bridge Health Monitoring System, Geolook's instrumentation and software stack integrates multi-sensor data streams into a unified digital twin environment. Static VW readings establish the structural baseline, while dynamic sensor data feeds modal identification algorithms. Drift correction for MEMS channels is applied in software using the co-located VW reading as a reference anchor — a technique that preserves the high temporal resolution of MEMS while eliminating the long-term offset problem. This approach is consistent with the data fusion methodologies described in machine learning applications in structural health monitoring, where sensor fusion and anomaly detection algorithms require clean, drift-corrected input data.

Similarly, at the MIT-WPU Tunnel Health Monitoring and Digital Twin Excellence Centre in Pune — inaugurated by Hon'ble Minister Sh. Nitin Gadkari — the research platform uses VW convergence and strain sensors as the long-term reference layer, with MEMS-based dynamic sensors capturing blast-induced vibration and traffic loading transients. The software layer reconciles both data streams, enabling researchers and practising engineers to study sensor performance degradation curves under real tunnel environmental conditions.

A VW sensor's inherent stability is only realised if the readout chain — datalogger, cable, and software — maintains equivalent long-term integrity. Dataloggers used for VW acquisition must provide a stable excitation sweep across the sensor's resonant frequency range (typically 400 – 6,000 Hz for standard gauges), with a frequency measurement resolution of at least 0.01 Hz to resolve 0.1 με strain increments. Multiplexed dataloggers that scan arrays of 16 to 64 VW channels are standard for bridge and tunnel deployments; scan intervals are typically set at 15 minutes to 1 hour for quasi-static monitoring, with event-triggered high-rate logging for dynamic events.

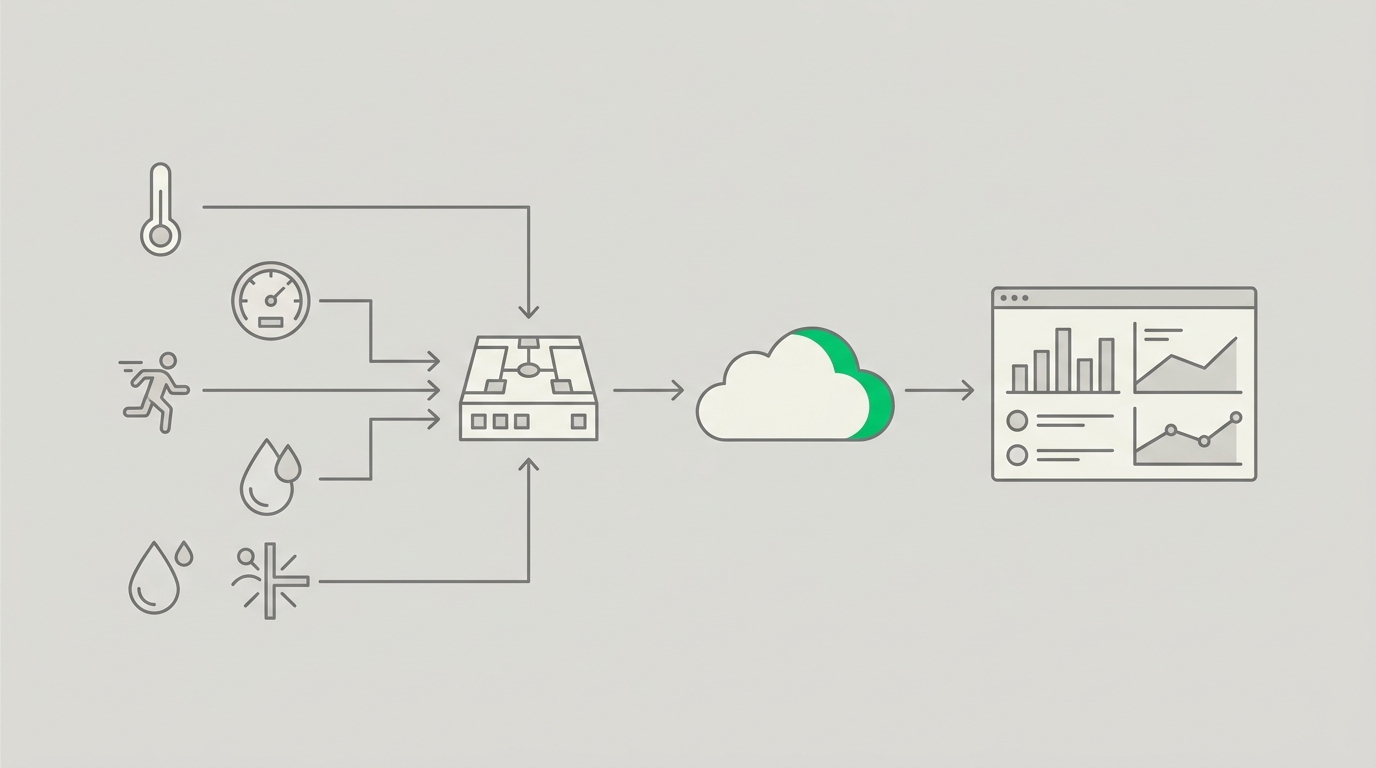

Selecting a multi-channel VW datalogger with telemetry that supports both VW and MEMS input types is essential for hybrid deployments. The datalogger firmware must timestamp each reading to UTC with sub-second accuracy so that VW and MEMS data streams can be synchronised in post-processing. Cloud-based SHM software then applies sensor-specific drift models, thermal corrections, and alarm thresholds — generating the condition indices that maintenance engineers and NHAI or RVNL project managers act upon.

For transport infrastructure specifically, SHM solutions for transport infrastructure must comply with data retention and reporting requirements set by MORTH and NHAI, which increasingly mandate continuous electronic monitoring for bridges with spans exceeding 100 m or structures in seismic zones III–V per IS 1893.

The decision framework for sensor selection in long-term SHM is driven by three variables: monitoring duration, measurement mode (static vs dynamic), and acceptable drift budget.

Choose VW strain gauges when: the monitoring programme extends beyond two years; the primary measurand is quasi-static strain, load, or deformation in concrete or steel; the installation environment involves high humidity, submersion, or embedment in concrete (where sensor replacement is impractical); and the project specification references IS 13311 or CWC dam instrumentation guidelines that implicitly assume VW technology.

Choose MEMS sensors when: the monitoring objective is dynamic — modal frequencies, damping ratios, traffic-induced vibration, or seismic response; the monitoring duration is less than two years or sensors can be periodically recalibrated; and the data acquisition rate must exceed 10 Hz continuously.

Choose both when: the structure requires a complete condition picture spanning static load effects and dynamic response — as is the case for major bridges, long tunnels, and high-rise buildings in seismic zones. In these cases, the software platform becomes the critical integration layer. Understanding structural health monitoring as a system — not a collection of individual sensors — is the conceptual shift that leads to better sensor selection decisions.

For engineers new to the field, a foundational review of what is structural health monitoring and why does it matter provides the framework within which sensor technology choices sit.

Q: What is the primary difference between a vibrating wire strain gauge and a MEMS sensor for long-term monitoring?

A: A vibrating wire strain gauge measures strain through the resonant frequency of a tensioned wire, producing a frequency output that is immune to cable resistance drift and supply voltage variation, making it inherently stable over decades. A MEMS sensor uses microfabricated silicon structures and outputs a voltage or digital signal that is susceptible to piezoresistive gauge factor drift and packaging stress relaxation over multi-year deployments.

Q: How long does a VW strain gauge last in a concrete embedment application?

A: VW strain gauge lifespan in concrete embedment applications is typically cited at 10 to 20 years in manufacturer datasheets, provided cable integrity is maintained and connectors are protected from corrosion. Field evidence from CWC-supervised dam instrumentation programs confirms that properly installed VW gauges have returned consistent readings for over 20 years, with the primary failure mode being cable damage rather than sensor drift.

Q: What causes MEMS drift in structural health monitoring applications?

A: MEMS drift in long-term static monitoring is caused by three mechanisms: temperature-dependent piezoresistive gauge factor variation (approximately −0.1% per °C for silicon), packaging stress relaxation in the epoxy or solder bonds attaching the MEMS die to its substrate, and low-frequency 1/f noise accumulation in signal conditioning electronics. Cumulative uncorrected drift over five years can exceed 50 microstrain in field conditions with diurnal temperature cycling.

Q: Can MEMS sensors be used alongside VW gauges in the same SHM system?

A: Yes, hybrid SHM architectures that combine VW gauges for static baseline monitoring and MEMS sensors for dynamic modal analysis are technically well-established and represent best practice for major infrastructure. The VW reading serves as a drift-correction reference anchor for co-located MEMS channels in software, preserving MEMS temporal resolution while eliminating long-term offset errors. A capable datalogger and SHM software platform are essential for this integration.

Q: Which Indian standards govern strain gauge selection for bridge and tunnel monitoring?

A: IRC SP-35 and IRC:114 provide the framework for bridge inspection and structural assessment in India, within which sensor selection for SHM is made. IS 13311 covers non-destructive testing of concrete and informs embedment sensor practice. For tunnel monitoring, NATM-based instrumentation practice and MORTH guidelines govern convergence and strain measurement requirements. CWC guidelines apply to dam instrumentation where VW sensors are the standard technology.
