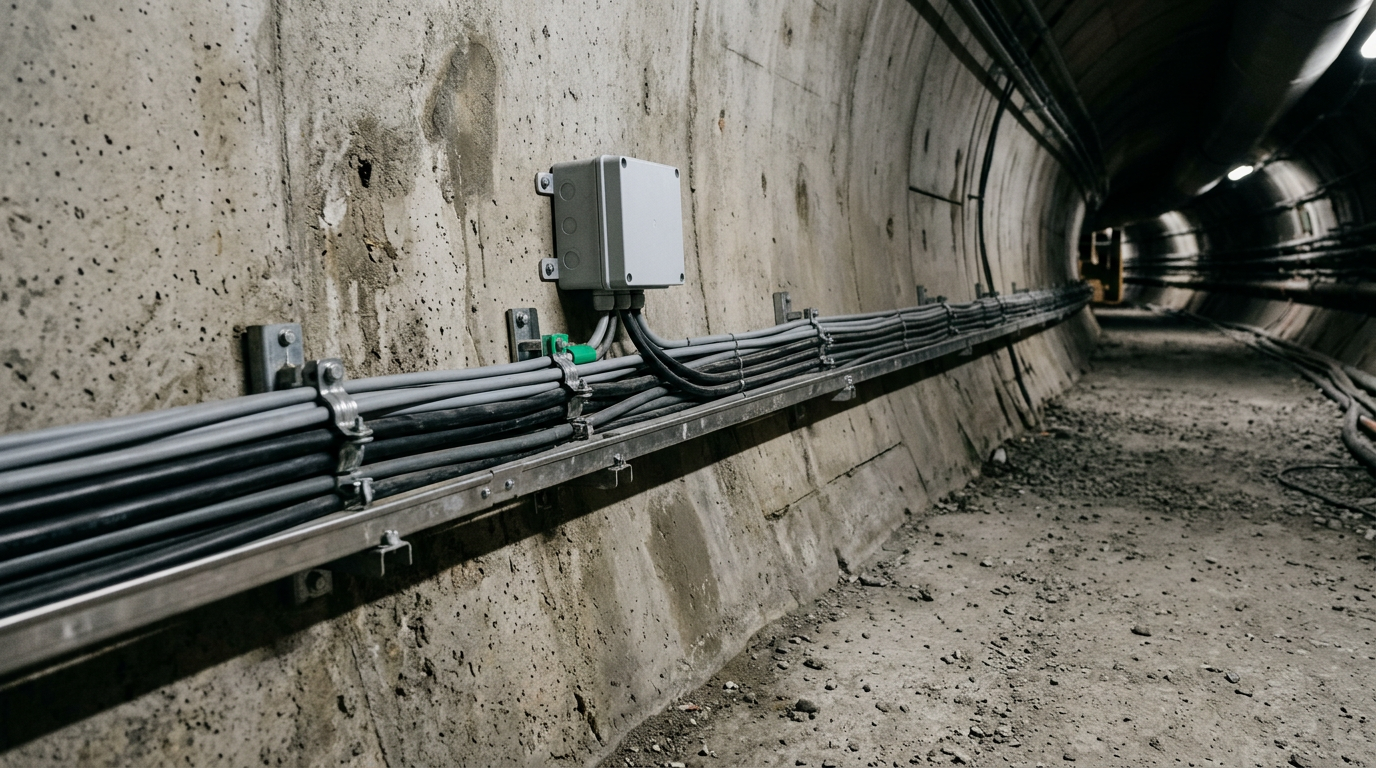

Metro Construction Monitoring: Instrumentation for Urban Safety

In October 2009, a section of the under-construction Delhi Metro viaduct collapsed near Laxmi Nagar, killing six workers and injuring fifteen — a reminder that urban tunnelling and elevated corridor construction carry consequences that extend far beyond the project boundary. The Commissioner of Metro Rail Safety (CMRS), operating under the Ministry of Housing and Urban Affairs, mandates independent safety audits and structural monitoring as preconditions for commissioning; yet instrumentation is still treated by many contractors as a compliance checkbox rather than an engineering control. Metro construction monitoring, when deployed correctly from cut-and-cover excavation through tunnel boring and final lining, gives project teams the data to act before a threshold is breached — not after.

This post sets out the instrumentation architecture, phase-wise checklist, and sensor selection logic that metro contractors, DMRC-type project management consultants, and EPC leads need to satisfy both CMRS requirements and the engineering realities of dense urban ground.

• Metro construction monitoring is a CMRS-mandated engineering discipline, not an optional add-on; instrumentation plans must be submitted before civil works commence on underground sections.
• Urban metro tunnels require simultaneous monitoring of ground settlement, lining convergence, groundwater piezometry, and third-party structure tilt — all referenced to a common datum.
• Sensor selection must account for the electromagnetic interference generated by traction power systems; vibrating-wire and fibre-optic sensors are preferred over resistive strain gauges in live metro environments.
• A phase-wise checklist — from pre-construction baseline through TBM drive to final lining — prevents instrumentation gaps that regulators flag during CMRS inspections.
• Digital integration of sensor data into a real-time dashboard, as demonstrated at the MIT-WPU Tunnel Health Monitoring and Digital Twin Excellence Centre in Pune, enables threshold-based alerts that protect both workers and adjacent structures.

Metro construction monitoring is the systematic, real-time measurement of geotechnical and structural parameters — including ground settlement, tunnel lining strain, piezometric head, and structural vibration — during the construction of underground and elevated metro rail infrastructure, with the purpose of detecting deviation from design-predicted behaviour before it becomes a safety event.

The definition matters because it distinguishes monitoring from inspection. A visual inspection by a site engineer captures a condition at one moment; a vibrating-wire piezometer reading every 15 minutes captures a trend. It is the trend — a pore pressure rising 8 kPa over 48 hours ahead of a TBM face, for instance — that gives a contractor the window to intervene. For underground metro construction instrumentation and monitoring solutions, the instrumentation system is the early-warning layer that sits between design assumptions and ground reality.

Indian metro projects operate under a layered regulatory framework. The Metro Railways (Construction of Works) Act 1978, as amended, gives CMRS authority over safety during construction. DMRC's own General Specifications for Civil Works reference IS 1892 for subsoil investigation and IS 2720 for soil testing, both of which underpin the geotechnical baseline that monitoring must validate. Where tunnelling is by NATM, the observational method — codified in IS 15026 — explicitly requires instrumentation as part of the design process, not as an afterthought.

A structured phase-wise approach ensures that no instrumentation gap exists between ground investigation and handover to operations. The following checklist reflects standard practice for cut-and-cover, NATM, and TBM-driven metro tunnels in Indian urban geology.

Phase 1 — Pre-Construction Baseline (minimum 4 weeks before excavation)

• Install surface settlement monitoring points on roads, footpaths, and building foundations within the zone of influence (typically 2× tunnel diameter from centreline).
• Establish inclinometer casings in boreholes to record pre-existing ground movement; IS 1892 borehole logs provide the stratigraphic context.
• Install vibrating-wire piezometers at multiple depths to record ambient pore water pressures; readings at ±0.1 kPa resolution are standard.
• Survey all third-party structures (buildings, utilities, heritage assets) with precise levelling to ±0.5 mm accuracy; photograph crack patterns and record crack widths in mm.
• Install tiltmeters on vulnerable adjacent structures; alert thresholds are typically set at 1/500 differential settlement ratio per DMRC project specifications.

Phase 2 — Excavation and Shoring (cut-and-cover) or TBM Drive

• Monitor strut loads in temporary support systems using vibrating-wire load cells; design load is typically expressed in kN per strut and alert thresholds set at 80% of design capacity.
• Read inclinometers at minimum 24-hour intervals during active excavation; lateral movement exceeding 25 mm or a rate exceeding 2 mm/day typically triggers a hold.
• Track piezometric levels continuously; a drawdown exceeding the design-permitted value can indicate piping or inadequate dewatering control.
• For TBM drives, monitor face pressure (bar), grout injection volume (litres/ring), and tail void grouting pressure in real time; deviations from the geotechnical baseline trigger face pressure adjustment.
• Surface settlement monitoring frequency increases to twice daily within the TBM influence zone (approximately 2× tunnel diameter ahead of and behind the face).

Phase 3 — Primary Lining and Tunnel Lining Convergence

• Install convergence monitoring targets at every 5–10 m chainage; measure crown settlement and horizontal diameter change using robotic total stations or tape extensometers.
• Embed vibrating-wire strain gauges in the shotcrete or precast segment lining to record hoop stress in micro-strain; compare against design lining capacity expressed in MPa.
• Monitor rock bolt or anchor loads using load cells where NATM is used; Ramban-Banihal NH-44 tunnel instrumentation under Geolook's deployment in association with DRAIPL demonstrated the value of continuous load cell data in identifying zones of stress redistribution in mixed-face conditions.

Phase 4 — Secondary Lining and Fit-Out

• Continue convergence monitoring at reduced frequency (weekly) until lining deformation rate falls below 0.1 mm/week for three consecutive readings.
• Conduct crack mapping on secondary lining using calibrated crack gauges; record width in mm and orientation.
• Verify that all embedded sensors are connected to the data acquisition system and that data continuity is confirmed before CMRS inspection.

Phase 5 — Pre-Commissioning and Handover

• Conduct trial run vibration measurements using accelerometers (mm/s²) to verify that track-induced vibration at adjacent structures does not exceed IS 2974 limits.
• Compile all monitoring data into a final geotechnical completion report for CMRS submission.
• Transition sensor network to the operations-phase SHM system; ensure data continuity across the construction-to-operations boundary.

Sensor selection in a metro environment is constrained by three factors that do not apply to greenfield tunnels: electromagnetic interference from traction power (750 V DC third rail or 25 kV AC overhead), restricted access windows during construction, and the need for data continuity across multi-year project timelines. For detailed guidance on tunnel monitoring sensor systems and data acquisition hardware, the following principles apply.

Vibrating-wire sensors — piezometers, strain gauges, load cells, and settlement cells — are the workhorse of metro construction monitoring because their frequency-based output is inherently immune to cable resistance changes caused by long cable runs and to most forms of electromagnetic interference. Resolution of 0.025% full scale is achievable, and long-term stability over multi-year deployments is well established.

Fibre-optic sensors, including distributed temperature and strain sensing (DTSS) using Brillouin scattering and discrete Fibre Bragg Grating (FBG) sensors, are increasingly specified for precast tunnel lining segments where embedment during manufacturing is feasible. FBG sensors offer strain resolution of approximately 1 micro-strain and are fully immune to electromagnetic interference — a significant advantage in traction power zones.

MEMS accelerometers measure structural vibration in mm/s² and are used both for blast monitoring during NATM drives and for ambient vibration measurement during trial runs. IS 2974 Part 4 provides limits for machine-induced vibration in structures.

Robotic total stations (RTS) with automatic target recognition provide sub-millimetre settlement and convergence data without requiring personnel in the tunnel during measurement cycles — critical for safety during active TBM drives.

For a broader view of sensor technologies applicable across underground structures, see our overview of IoT sensors for tunnel health monitoring.

The table below compares the primary instrumentation methods used in metro construction monitoring across key engineering parameters. Selection depends on ground conditions, construction method, and CMRS documentation requirements.

The Commissioner of Metro Rail Safety is the statutory authority under the Metro Railways (Operation and Maintenance) Act 2002 and its construction-phase provisions. CMRS inspections before commissioning require contractors to demonstrate that the structure has behaved within design-predicted limits throughout construction — and instrumentation records are the primary evidence. An incomplete monitoring record, or one with data gaps during critical construction phases, is grounds for CMRS to withhold the certificate of fitness.

Beyond CMRS, metro construction monitoring in India intersects with several other regulatory and technical frameworks. The National Building Code 2016 Part 6 addresses deep excavation adjacent to existing structures. IS 1893 (Part 1) 2016 governs seismic design inputs, which are relevant to sensor alert threshold setting in seismic zones III and IV — where most Indian metro cities sit. IS 13920 governs ductile detailing of reinforced concrete, and strain monitoring of lining elements provides field validation of design assumptions.

For urban construction SHM more broadly, the observational method — where instrumentation data drives real-time design modification — is the most defensible approach when ground conditions deviate from the geotechnical baseline. This is the method used in Geolook's instrumentation deployment at the Ramban-Banihal NH-44 tunnels on NH-44 in Jammu and Kashmir, where real-time SHM across five tunnels in association with DRAIPL provided the data continuity required for NHAI regional office review meetings. The same principle applies in urban metro contexts, where the consequences of ground movement extend to occupied buildings and live utilities.

To understand how SHM frameworks apply across tunnel, bridge, and dam asset classes under Indian regulatory requirements, the post on structural health monitoring for bridges dams and tunnels india provides the regulatory and technical context.

A metro construction monitoring system generates data from dozens to hundreds of sensors across a linear project corridor that may extend several kilometres. The data acquisition architecture must handle this scale while delivering alert latency short enough to be actionable — typically under 5 minutes for threshold exceedances during active TBM drives.

Dataloggers with multiplexed vibrating-wire inputs, typically 16 to 32 channels per unit, are deployed at instrument clusters along the alignment. Each logger communicates via 4G LTE or fibre-optic backhaul to a central server, where data is ingested, quality-checked, and displayed on a web-based dashboard accessible to the contractor, PMC, and CMRS inspector. Alert thresholds — expressed in engineering units such as mm of settlement, kPa of pore pressure, or kN of strut load — trigger SMS and email notifications to named responsible engineers.

The MIT-WPU Tunnel Health Monitoring and Digital Twin Excellence Centre in Pune, inaugurated by Hon'ble Minister Sh. Nitin Gadkari, demonstrates the next layer of this architecture: a digital twin environment where sensor data populates a 3D structural model in real time, enabling engineers to visualise stress distribution and deformation patterns across the tunnel cross-section rather than reading raw numbers from a spreadsheet. This capability is directly applicable to metro construction monitoring, where the spatial relationship between TBM position, ground settlement trough, and adjacent structure response is critical to decision-making.

For a full overview of sensor types and IoT integration options applicable to this architecture, see our guide on what sensors and systems are used in tunnel health monitoring for urban metro projects. For the hardware layer, our geotechnical and structural sensor product range covers vibrating-wire, MEMS, and fibre-optic options suitable for metro environments.

In dense Indian cities — Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Kolkata — metro alignments pass beneath or adjacent to buildings that predate the project by decades, many of which have no structural drawings and no known foundation type. Third-party structure protection (TPSP) monitoring is therefore the most legally and reputationally sensitive component of metro construction monitoring.

The standard TPSP instrumentation suite includes: precise levelling benchmarks on building plinths, MEMS tiltmeters on columns and walls, crack gauges on existing cracks (measured in mm), and vibration monitors during blasting or dynamic compaction. Alert levels are typically set in three tiers — green (normal), amber (caution, increase monitoring frequency), and red (halt works, notify structural engineer) — with the amber threshold commonly set at 50% of the predicted maximum settlement and the red threshold at 80%.

For underground structure monitoring principles that apply equally to metro tunnels and other subsurface civil works, the post on underground structure instrumentation covers the geotechnical and structural instrumentation framework in detail.

Documentation of TPSP monitoring data is also a contractual obligation in most DMRC and metro corporation contracts, where the contractor bears liability for damage to third-party structures within the zone of influence. A complete, timestamped, tamper-evident monitoring record is the contractor's primary defence in any dispute.

Q: What is metro construction monitoring and why is it required by CMRS?

A: Metro construction monitoring is the real-time measurement of geotechnical and structural parameters — settlement, convergence, pore pressure, lining strain, and structural tilt — during metro rail construction to detect deviation from design-predicted behaviour. CMRS requires documented monitoring records as evidence that the structure performed within design limits before issuing a certificate of fitness for commissioning.

Q: Which sensors are most suitable for metro tunnel monitoring in the presence of traction power interference?

A: Vibrating-wire sensors and fibre-optic Fibre Bragg Grating sensors are most suitable for metro tunnel monitoring where traction power systems generate electromagnetic interference. Vibrating-wire instruments output a frequency signal that is inherently immune to cable resistance variation, while FBG sensors are fully passive and immune to all forms of electrical interference, making both appropriate for 750 V DC and 25 kV AC environments.

Q: What settlement alert thresholds are typically used for third-party structures during metro construction?

A: Alert thresholds for third-party structure settlement during metro construction are typically set in three tiers: an amber alert at approximately 50% of the predicted maximum settlement value, and a red alert at 80%, at which point works are halted and a structural engineer is notified. Differential settlement ratios of 1/500 are commonly referenced in DMRC project specifications for adjacent building protection.

Q: How does the observational method under IS 15026 relate to metro construction monitoring?

A: IS 15026 codifies the observational method for NATM tunnelling, which requires instrumentation to be an integral part of the design process rather than a post-construction check. Under this method, monitoring data collected during excavation is compared against predicted behaviour, and the support design — shotcrete thickness, rock bolt spacing, face pressure — is adjusted in real time based on measured ground response, reducing both over-design and safety risk.

Q: What data should be submitted to CMRS as part of the pre-commissioning safety case for a metro tunnel?

A: The CMRS pre-commissioning submission for a metro tunnel should include the complete geotechnical monitoring record from pre-construction baseline through final lining, covering settlement, convergence, pore pressure, strut loads, and third-party structure response. It should also include a geotechnical completion report comparing measured values against design-predicted limits, trial run vibration measurements referenced to IS 2974, and confirmation of sensor system data continuity.

Geolook engineers have deployed real-time tunnel monitoring systems across NATM and TBM-driven tunnels in India, including the Ramban-Banihal NH-44 corridor in Jammu and Kashmir, and have built the instrumentation and digital twin research infrastructure at the MIT-WPU Tunnel Health Monitoring and Digital Twin Excellence Centre in Pune. We understand CMRS documentation requirements, DMRC contract structures, and the geotechnical realities of Indian urban ground.

If you are a metro contractor, PMC, or DMRC-type client preparing an instrumentation plan for an underground section, we can provide a phase-wise sensor layout, data acquisition architecture, and alert threshold framework specific to your alignment geology and contract requirements.

Submit your metro project details and request a proposal from Geolook's tunnel monitoring team. You can also explore our full range of underground construction monitoring solutions to understand the instrumentation options available for your project phase.
