What Instruments Detect Cracks and Tilt in Old Heritage Structures?

In 2018, a portion of the 16th-century Bibi Ka Maqbara boundary wall in Aurangabad collapsed following monsoon saturation, prompting the Archaeological Survey of India (ASI) to issue directives on structural condition assessment for protected monuments — a regulatory signal that heritage engineers can no longer treat crack and tilt monitoring as a periodic visual exercise. The question of what instruments are used to detect cracks and tilt in old heritage structures in India is therefore not academic; it is a compliance and safety imperative for every engineer assigned to a protected or listed structure.

Heritage masonry — lime-mortar rubble, brick-in-lime, dressed stone, and composite ashlar — responds to differential settlement, thermal cycling, and groundwater fluctuation in ways that modern reinforced concrete does not. Crack widths of 0.2 mm and tilt deviations of 0.01° can be structurally significant in a 300-year-old sandstone pier, whereas the same values would be within tolerance in a contemporary RC frame. Selecting the right instrument, calibrated to the right resolution, is the first engineering decision. This post maps the available sensor technologies to their heritage-specific applications, accuracy requirements, and installation constraints.

• Vibrating wire crack meters and MEMS tilt sensors are the two primary instrument families used to detect cracks and tilt in old heritage structures in India, offering resolutions down to 0.001 mm and 0.001° respectively.
• ASI conservation guidelines and IS 13311 (non-destructive testing of concrete) provide the accuracy benchmarks that instrument selection must satisfy for protected monuments.
• Non-invasive or minimally invasive mounting is mandatory on Grade I and Grade II listed structures; adhesive-bonded surface mounts and magnetic bases are preferred over drilled anchors.
• Data from crack meters and tilt sensors must be correlated with ambient temperature and relative humidity channels because heritage masonry exhibits measurable thermally induced crack breathing of 0.05–0.3 mm across a 30 °C diurnal range.
• Continuous automated monitoring with threshold-based alerts is increasingly specified by state heritage departments and INTACH for structures in seismically active zones classified under IS 1893.

Structural health monitoring (SHM) of heritage structures is the continuous or periodic measurement of physical parameters — crack width, angular tilt, vibration, and settlement — using calibrated sensors to detect deterioration before it reaches a life-safety threshold in a historically significant building or monument.

Heritage SHM differs from conventional SHM in three material ways. First, the host structure is irreplaceable, so sensor installation must not introduce new damage pathways such as drilled anchor holes through decorative plasterwork or historic masonry joints. Second, the material properties of lime mortar, fired brick, and natural stone are highly variable and often unknown, making model-based damage thresholds unreliable without direct measurement. Third, the monitoring programme must satisfy both engineering safety criteria and conservation ethics — a dual mandate that shapes every instrument choice.

For engineers working on ASI-protected monuments or INTACH-listed structures, the relevant accuracy benchmarks are drawn from IS 13311 Part 1 (ultrasonic pulse velocity) and IS 13311 Part 2 (rebound hammer) for condition assessment, while crack and tilt instruments must meet the resolution requirements specified in the project-specific monitoring plan, typically ±0.01 mm for crack width and ±0.005° for tilt in high-sensitivity applications.

A vibrating wire crack meter for heritage masonry monitoring measures the change in distance across a crack or joint by converting linear displacement into a frequency signal. The vibrating wire principle offers long-term stability — zero drift over months without recalibration — which is essential when monitoring a monument where access for manual zeroing is restricted or where the monitoring programme spans multiple monsoon cycles.

Vibrating wire (VW) crack meters used in heritage applications typically have a measurement range of 0–50 mm with a resolution of 0.001 mm and an accuracy of ±0.1% full scale. The thermistor integrated into the sensor body allows simultaneous temperature compensation, correcting for the thermal expansion of the mounting hardware — a correction that can amount to 0.05–0.15 mm across a 20 °C temperature swing in a stone structure exposed to direct solar radiation.

For surface-mounted crack meter heritage applications where drilling is prohibited, the sensor is bonded using epoxy adhesive to stainless steel mounting blocks placed astride the crack. The blocks must be positioned perpendicular to the crack axis; angular misalignment of more than 5° introduces a cosine error that reduces effective resolution. On curved surfaces such as dome haunches or cylindrical columns, custom-fabricated curved mounting plates are used.

Linear potentiometric crack meters offer a lower-cost alternative with a resolution of approximately 0.01 mm, but their resistive elements are susceptible to humidity ingress in the wet masonry environments typical of riverside monuments and coastal forts. For long-term deployments exceeding 12 months, VW sensors are the preferred choice in Indian heritage contexts where ambient relative humidity can exceed 90% during the monsoon season.

Optical crack gauges — graduated glass or acrylic tell-tales bonded across a crack — provide a visual record but no electronic output. They are appropriate for low-frequency manual inspection programmes but cannot feed into automated alert systems. They remain in use by ASI field teams as a low-cost first-pass screening tool before electronic instrumentation is specified.

A tilt sensor monument application measures the angular deviation of a structural element — a column, a minaret, a retaining wall, or a plinth — from its reference orientation, expressed in degrees, milliradians, or arc-seconds. In heritage structures, tilt monitoring is used to detect progressive leaning caused by differential foundation settlement, soil creep, or the loss of lateral restraint from a collapsed adjacent element.

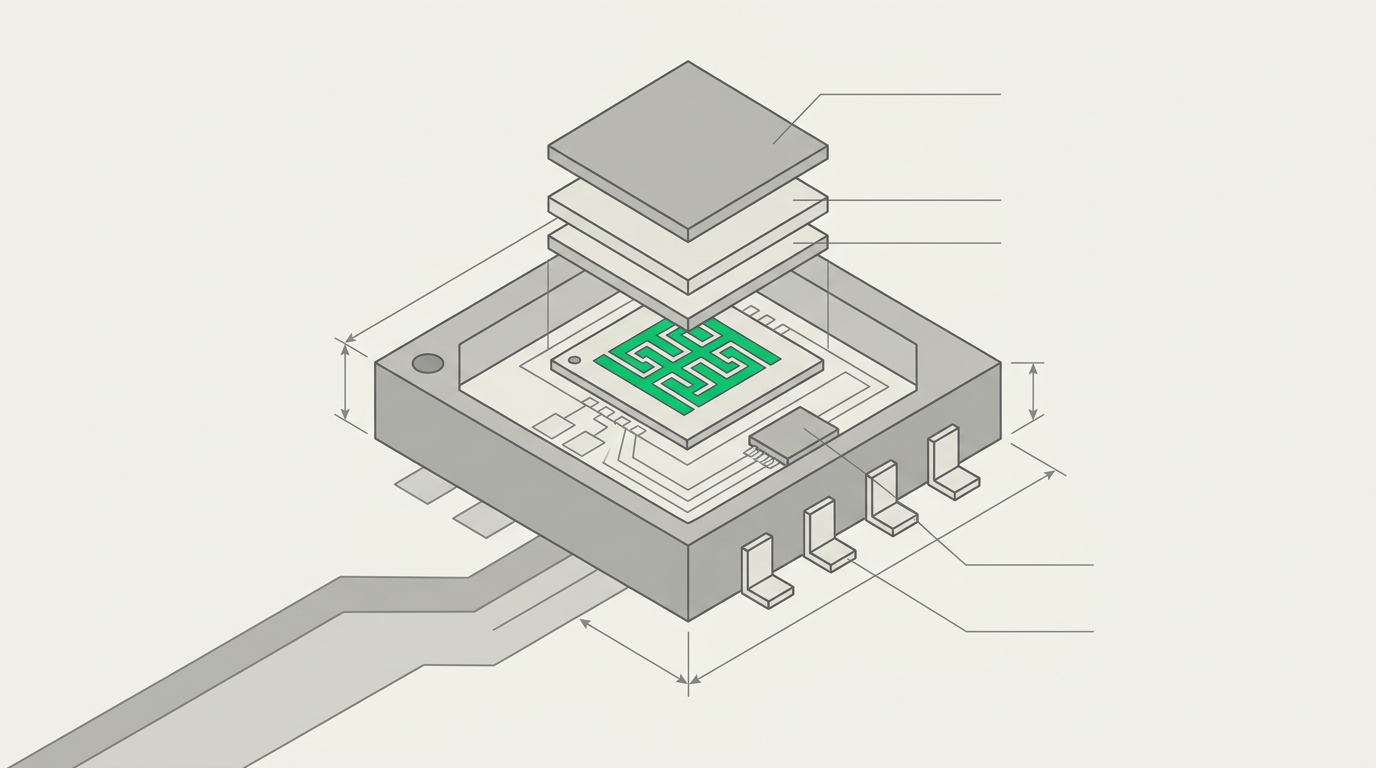

Two sensor technologies dominate heritage tilt monitoring in India: MEMS (micro-electromechanical systems) inclinometers and electrolytic bubble tilt sensors. A MEMS tilt meter for structural inclination monitoring uses a silicon proof mass suspended on etched flexures; acceleration due to gravity acting on the proof mass produces a differential capacitance signal proportional to tilt angle. Modern MEMS tilt sensors achieve resolutions of 0.001° with a measurement range of ±15° to ±90° depending on the axis configuration.

Electrolytic tilt sensors use a conductive fluid in a sealed cavity; as the sensor tilts, the fluid redistributes across electrodes, changing the resistance ratio. They offer resolutions comparable to MEMS (0.001°–0.005°) but are sensitive to vibration, making them less suitable for monuments in urban environments subject to traffic-induced ground vibration. For a monument located near a busy arterial road, MEMS sensors with built-in vibration filtering are the appropriate choice.

Biaxial tilt sensors measure inclination simultaneously in two orthogonal planes (X and Y axes), which is important for structures that may rotate about a diagonal axis — a failure mode observed in isolated masonry towers and free-standing gate piers. Single-axis sensors are adequate for retaining walls and revetments where the primary movement direction is known.

Temperature sensitivity is a critical specification for heritage tilt sensor monument deployments. A MEMS sensor with a temperature coefficient of 0.002°/°C will introduce a thermal error of 0.06° across a 30 °C diurnal range if not compensated. Sensors with onboard temperature compensation circuits or those paired with a dedicated temperature channel in the data acquisition unit eliminate this error source.

For the vibrating wire vs MEMS accuracy in tropical climate conditions comparison relevant to Indian heritage sites, MEMS sensors have demonstrated superior performance in high-humidity environments because they have no mechanical resonant element susceptible to corrosion, while VW tilt sensors (pendulum-type) can exhibit frequency drift if the wire corrodes in a salt-laden coastal atmosphere.

The table below maps the principal instrument types to their heritage-specific applications, accuracy parameters, installation constraints, and suitability for Indian climatic conditions. This structured comparison is intended to support instrument selection during the monitoring plan preparation stage.

For a broader geotechnical sensor comparison covering instruments used across soil, rock, and structural applications, the Geolook sensor technology resource library provides specification-level detail on each technology family.

The Archaeological Survey of India's conservation manual does not prescribe specific sensor accuracy values, but it requires that any monitoring programme demonstrate fitness for purpose — meaning the instrument resolution must be at least one order of magnitude finer than the threshold crack width or tilt angle that triggers a conservation intervention. In practice, this means that if the intervention threshold for a sandstone column is a crack width increase of 0.5 mm per month, the crack meter must resolve to at least 0.05 mm; a VW crack meter resolving to 0.001 mm satisfies this requirement with a factor of 50.

IS 1893 Part 1 (2016) classifies seismic zones across India, and monuments in Zone IV (parts of Delhi, Uttarakhand, Himachal Pradesh, J&K) and Zone V (northeast India, Andaman and Nicobar) are subject to seismic ground motion that can induce transient crack opening of 0.1–0.5 mm and tilt changes of 0.01°–0.05° during a moderate earthquake. Continuous monitoring with a data acquisition rate of at least 10 Hz is required to capture these transient events; standard slow-scan DAQ systems logging at 1-minute intervals will miss them entirely.

INTACH's Illustrated Glossary of Terms Used in Heritage Conservation (2004) and the National Disaster Management Authority (NDMA) guidelines on earthquake risk mitigation for heritage structures both emphasise the need for pre-event baseline data. A monitoring system installed after a seismic event cannot establish whether observed cracks pre-date the earthquake or were induced by it — a distinction with significant legal and insurance implications for the custodian institution.

For structures in areas of known ground subsidence — such as monuments in the Yamuna floodplain in Delhi or coastal monuments in Mumbai — settlement monitoring using precise levelling or hydrostatic settlement sensors should accompany crack and tilt monitoring. Differential settlement of 5 mm between two foundation pads can induce a tilt of 0.05° in a 6-metre column, which is within the detection range of a MEMS tilt sensor but below the threshold of visual inspection.

Geolook's instrumentation work for the urban infrastructure monitoring solutions portfolio, including sensor analytics deployments for L&T Constructions at Noida Sector-120, has established field-validated accuracy benchmarks for MEMS tilt sensors and VW crack meters in high-humidity, variable-temperature environments comparable to those encountered at heritage sites in the Indo-Gangetic plain.

Sensor accuracy is only as useful as the data acquisition system that reads it. For heritage sites, the DAQ architecture must address three constraints that do not apply to conventional construction monitoring: power availability, visual impact, and access restrictions.

Solar-powered wireless DAQ units with GSM/4G telemetry are the standard solution for monuments without grid power. A typical unit draws 50–200 mW in continuous logging mode and can sustain operation through a 5-day overcast period on a 20 Ah lithium battery with a 20 W solar panel. The unit should be housed in an IP67-rated enclosure and mounted in a location that does not compromise the visual integrity of the monument — typically behind a parapet, within a service alcove, or at ground level behind vegetation.

Scan rates for crack and tilt channels are typically set at 15-minute intervals for baseline monitoring, switching to 1-minute intervals when a pre-alert threshold is crossed. For seismic event capture, a separate high-speed channel at 100–200 Hz is triggered by an onboard accelerometer when ground acceleration exceeds a set threshold (typically 0.01 g for sensitive heritage structures).

Alert thresholds are set in consultation with the conservation architect and structural engineer. A common tiered alert structure uses three levels: a green-to-amber threshold at 50% of the intervention limit (e.g., 0.25 mm crack width increase), an amber-to-red threshold at 80% (0.40 mm), and an emergency alert at 100% (0.50 mm) that triggers an SMS and email notification to the site custodian and the monitoring engineer simultaneously.

For a deeper understanding of how sensor networks are structured for complex heritage and urban infrastructure programmes, the heritage structure SHM resource provides a detailed treatment of network topology, data management, and reporting protocols.

Geolook's accessories supply for the IIT-Mandi Bridge Health Monitoring programme illustrates the precision requirements that apply equally to bridge and heritage structural monitoring. The IIT-Mandi project required sensor mounting hardware, cable management, and environmental protection components compatible with the high-altitude Himalayan environment — conditions characterised by wide diurnal temperature ranges (−5 °C to +35 °C), high UV exposure, and seasonal snowmelt moisture ingress. These are conditions that overlap significantly with those encountered at heritage monuments in Himachal Pradesh, Uttarakhand, and Ladakh, where stone temples, fortifications, and step-wells require monitoring under similarly demanding environmental constraints.

The lesson from this programme is that sensor accuracy specifications stated at 25 °C in a laboratory must be verified against the actual operating temperature range of the deployment site. A VW crack meter specified at ±0.1% full scale at 25 °C may exhibit a thermal zero shift of 0.02–0.05 mm at −5 °C if the mounting hardware has a different coefficient of thermal expansion from the sensor body — a discrepancy that must be accounted for in the monitoring plan's uncertainty budget.

Q: What instruments are used to detect cracks and tilt in old heritage structures in India?

A: The primary instruments used to detect cracks and tilt in old heritage structures in India are vibrating wire crack meters (resolution 0.001 mm) and MEMS biaxial tilt sensors (resolution 0.001°). These are supplemented by fibre optic distributed strain sensors, electrolytic tilt sensors, and robotic total station surveys depending on the structure's geometry, access constraints, and monitoring frequency requirements.

Q: What is the minimum accuracy required for a crack meter heritage monitoring programme on an ASI-protected monument?

A: A crack meter used in a heritage monitoring programme must resolve to at least one-tenth of the intervention threshold crack width. If the conservation engineer sets an intervention threshold of 0.5 mm crack width increase, the instrument must resolve to 0.05 mm or finer. Vibrating wire crack meters with 0.001 mm resolution satisfy this requirement for virtually all heritage masonry applications under ASI guidelines.

Q: Can tilt sensors be installed on heritage structures without drilling into the historic fabric?

A: Yes. MEMS tilt sensors can be mounted on heritage structures without drilling by using epoxy-bonded stainless steel base plates or rare-earth magnetic bases on ferrous elements. Adhesive bonding with reversible conservation-grade epoxy is the preferred method on stone and brick surfaces, as it avoids mechanical damage to the historic fabric and can be removed without residual damage during decommissioning.

Q: How does a tilt sensor monument installation account for thermal expansion errors?

A: A tilt sensor monument installation accounts for thermal expansion errors by selecting sensors with onboard temperature compensation circuits and by logging a dedicated temperature channel alongside the tilt data. MEMS sensors with a temperature coefficient below 0.002°/°C, combined with software-based thermal correction applied during data processing, reduce thermally induced tilt errors to below 0.005° across a 30 °C diurnal temperature range typical of Indian heritage sites.

Q: What data acquisition scan rate is appropriate for heritage structure crack and tilt monitoring in seismic zones?

A: For heritage structures in IS 1893 seismic Zones IV and V, the DAQ system should log crack and tilt channels at a minimum of 1-minute intervals during baseline monitoring, with a high-speed seismic trigger channel operating at 100–200 Hz to capture transient crack opening during ground motion events. Slow-scan systems logging at 15-minute or hourly intervals will not capture earthquake-induced transient displacements.

Selecting the right crack meter or tilt sensor for a heritage structure requires matching instrument resolution, installation method, and environmental rating to the specific conservation constraints of the site. Geolook's engineering team works with heritage conservation architects, structural engineers, and procurement leads to specify sensor systems that satisfy both the accuracy requirements of the monitoring programme and the non-invasive installation mandates of ASI, INTACH, and state heritage departments.

To discuss instrument selection for your heritage monitoring project, review our full sensor specifications, or request a site-specific monitoring plan, contact the Geolook heritage SHM engineering team directly. Our team can provide specification sheets, installation method statements, and accuracy uncertainty budgets tailored to your structure's material type, seismic zone classification, and monitoring objectives.
