Heritage Building Monitoring: Non-Invasive SHM for India's Legacy

In September 2018, a portion of the 16th-century Charminar in Hyderabad shed plaster and masonry fragments, prompting the Archaeological Survey of India (ASI) to undertake emergency stabilisation works — a reminder that India's built heritage is under continuous, often invisible, structural stress. The incident exposed a gap that conservation architects and ASI officials know well: visual inspection alone cannot detect the sub-millimetre crack propagation, differential settlement, or micro-vibration that precede visible distress in old masonry. Heritage building monitoring, when executed with non-invasive instrumentation, closes that gap without altering the fabric of a protected structure.

India holds over 3,693 centrally protected monuments under the Ancient Monuments and Archaeological Sites and Remains Act, 1958 (AMASR Act), and thousands more under state protection. Each is subject to the ASI's conservation guidelines, which prohibit interventions that compromise original material or structural integrity. This regulatory constraint makes non-invasive structural health monitoring (SHM) not merely preferable but often the only permissible approach.

• Heritage building monitoring must comply with ASI conservation guidelines and the AMASR Act, which restrict invasive drilling, anchoring, or chemical injection into protected fabric.
• Non-invasive sensors — including vibrating wire crack meters, MEMS tilt meters, and fibre-optic strain gauges — can be surface-mounted or reversibly attached, leaving no permanent mark on historic masonry.
• IS 1893 (Part 1): 2016 seismic zone classifications directly determine the vibration thresholds that heritage structures in earthquake-prone regions must be monitored against.
• Real-time data acquisition with alert thresholds allows conservation teams to distinguish seasonal thermal movement from structurally significant displacement before damage becomes irreversible.
• Geolook's sensor analytics deployed at urban high-rise projects such as L&T Constructions Noida Realty Green, Sector-120 demonstrate the same DAQ architecture that scales down to heritage applications.

Heritage building monitoring is the continuous or periodic measurement of structural parameters — crack width, tilt, settlement, vibration, and strain — in historically significant structures using instrumentation methods that do not alter, damage, or chemically interact with original building fabric.

The discipline sits at the intersection of structural engineering, conservation science, and geotechnical instrumentation. Unlike new-construction SHM, where sensors can be embedded during casting or anchored into structural members, monument monitoring must work entirely from the surface or through reversible mechanical attachment. This constraint shapes every sensor selection and installation decision.

For ASI officials and conservation architects, the practical objective is twofold: detect deterioration early enough to permit reversible intervention, and generate an auditable data record that satisfies both engineering review and heritage documentation requirements. A well-designed heritage SHM system produces time-stamped displacement and vibration records that can be presented to the National Monuments Authority (NMA) or a state heritage committee as evidence-based justification for conservation works.

Explore Geolook's heritage structure monitoring projects to see how these principles have been applied to protected buildings across India.

The AMASR Act and ASI's conservation manuals draw a clear line between reversible and irreversible interventions. Drilling anchor holes for conventional sensor brackets, injecting epoxy to bond strain gauges, or cutting chases for cable routing all constitute irreversible interventions that require prior written permission from the ASI Director General and, in many cases, a heritage impact assessment. In practice, such permissions are rarely granted for instrumentation alone.

Non-invasive heritage SHM sidesteps this regulatory barrier by using surface-mount adhesive pads rated for stone and brick substrates, magnetic clamps on ferrous elements such as iron ties and grilles, and optical targets that require no substrate penetration. Vibrating wire crack meters, for instance, can be installed across masonry joints using reversible stainless-steel pin anchors set in lime mortar plugs — plugs that can be removed and the holes repointed without trace. MEMS tilt meters can be strapped to pilasters or column shafts using stainless banding, again fully reversible.

Beyond regulatory compliance, non-invasive methods preserve the evidentiary value of the structure itself. Masonry that has been drilled or chemically treated loses some of its material authenticity, which affects both UNESCO World Heritage assessments and future conservation research. The engineering case and the conservation case align: do not alter what you are trying to protect.

For a detailed sensor-by-sensor breakdown, see our guide on non invasive shm sensors for old and heritage buildings.

The following checklist is organised by the structural parameter being measured. Each item specifies the sensor type, the typical measurement range relevant to heritage masonry, and the installation constraint that governs non-invasive deployment.

1. Crack width and crack propagation: Vibrating wire crack meters (gauge length 50–150 mm, resolution ±0.025% FS) surface-mounted across masonry joints using reversible lime-mortar pin anchors. Measurement range typically 0–25 mm. Reference: vibrating wire crack meter specifications. Alert threshold for heritage masonry is commonly set at 0.2 mm incremental change per 30-day period, though the conservation architect must define site-specific limits.
2. Differential tilt and out-of-plumb: MEMS tilt meters (resolution 0.001°, range ±15°) strapped to structural columns, minarets, or spires using stainless banding. No drilling required. Review MEMS tilt meter technical data for full specification. Tilt exceeding 1:500 (2 mm/m) in unreinforced masonry is a common trigger for detailed structural assessment under IS 1905: 1987.
3. Foundation settlement: Precise levelling targets (reflective discs) bonded with reversible adhesive to plinth courses, monitored by robotic total station or digital level. Settlement differential greater than 25 mm between adjacent foundation elements in unreinforced masonry warrants immediate review per IS 1904: 1986.
4. Ambient vibration and traffic-induced vibration: Triaxial MEMS accelerometers (sensitivity 1 mg, frequency range 0.1–100 Hz) surface-clamped to structural walls or floors. Peak particle velocity (PPV) limits for heritage masonry are typically 2–5 mm/s as referenced in IS 2974 and DIN 4150-3, which ASI conservation engineers frequently cite in the absence of a dedicated Indian standard for vibration limits on protected structures.
5. Thermal and hygroscopic movement: Thermistors and relative humidity sensors co-located with crack meters to decouple seasonal movement from structural distress. Stone and brick masonry expands approximately 5–12 × 10⁻⁶ per °C; without thermal correction, a 20°C seasonal swing can produce apparent crack movement of 0.1–0.24 mm in a 1-metre gauge length — enough to trigger false alerts.
6. Strain in structural elements: Fibre-optic Bragg grating (FBG) sensors bonded with reversible epoxy to timber lintels, iron ties, or stone arches. Gauge length 10–100 mm, resolution 1 micro-strain. FBG sensors are particularly suited to heritage applications because they are electrically passive, immune to lightning, and can be removed without substrate damage if the bonding agent is selected correctly.

The table below compares the principal sensor technologies used in monument monitoring across the parameters most relevant to ASI officials and conservation architects making procurement decisions.

A heritage SHM data acquisition system must satisfy two constraints that rarely conflict in new construction but frequently do in protected buildings: it must be wireless or use surface-routed cabling that does not penetrate walls, and it must operate on low power to avoid introducing new electrical infrastructure into a structure that may have no modern services.

The preferred architecture for most Indian heritage sites uses a mesh of wireless sensor nodes transmitting to a local gateway over 900 MHz or 2.4 GHz ISM-band radio, with the gateway connecting to a cloud dashboard via 4G LTE. Node battery life of 2–5 years is achievable with event-triggered sampling: sensors report at a low base rate (e.g., one reading per hour for crack meters and tilt meters) and switch to high-frequency sampling (e.g., 100 Hz for accelerometers) when a trigger threshold is crossed.

This architecture mirrors the industrial-grade DAQ deployed by Geolook at DLF Downtown Gurgaon with Ahluwalia Constructions for real-time settlement monitoring, and at DLF Privana Gurgaon with ACC India for building settlement DAQ — both projects involving dense sensor arrays with centralised data management. The same DAQ principles apply to heritage monitoring, scaled to the lower sensor count and the wireless-first constraint of protected sites.

Alert thresholds should be defined in the monitoring plan before installation, reviewed by the structural engineer of record, and documented in the heritage impact assessment. A two-tier alert system is standard: a yellow alert triggers an automated notification to the conservation architect for review; a red alert triggers an immediate site inspection and, if confirmed, notification to the ASI Superintending Archaeologist of the circle.

India's seismic zone map under IS 1893 (Part 1): 2016 places a significant proportion of the country's most important heritage structures in Zones III, IV, and V. The Qutb Minar in Delhi (Zone IV), the temples of Hampi in Karnataka (Zone II–III boundary), and the monuments of the Kangra Valley in Himachal Pradesh (Zone V) all face seismic demands that unreinforced lime-mortar masonry was never designed to resist by modern code standards.

For heritage SHM, the seismic monitoring objective is not to verify code compliance — these structures cannot be retrofitted to IS 13920: 2016 ductile detailing requirements without destroying their character — but to establish a baseline dynamic signature and detect any post-event change in natural frequency or modal damping that indicates structural damage. A reduction in the fundamental frequency of a masonry tower of more than 5% following a seismic event is a widely used engineering indicator of significant cracking or joint opening, though the conservation architect must define site-specific thresholds based on the structure's documented condition.

Construction vibration from nearby sites is an equally important concern. IS 2974 (Part 1): 1982 provides guidance on permissible vibration levels for structures, and DIN 4150-3 is frequently referenced by Indian structural engineers for heritage-specific limits. A PPV of 2 mm/s at 10 Hz is a commonly applied precautionary limit for unreinforced historic masonry, though this should be confirmed with the project's structural engineer and the relevant ASI circle office.

For projects near active construction, a crack and tilt monitoring system for heritage buildings in india provides the continuous record needed to demonstrate that construction activities have not caused measurable structural change — a requirement increasingly specified in environmental impact assessments for projects within the 100-metre and 300-metre regulated zones around ASI-protected monuments under the AMASR (Amendment and Validation) Act, 2010.

India's colonial-era built heritage — railway stations, courthouses, universities, and administrative buildings constructed between approximately 1850 and 1947 — presents a distinct monitoring challenge. These structures typically combine load-bearing brick masonry with cast-iron or wrought-iron structural elements, timber floor systems, and lime-concrete foundations. The material heterogeneity means that a single sensor type is rarely sufficient; a multi-parameter monitoring scheme is almost always required.

Cast-iron columns and wrought-iron roof trusses in Victorian-era railway stations, for example, are susceptible to fatigue cracking at riveted connections under repeated dynamic loading from train operations. FBG strain gauges bonded to the tension flange of wrought-iron girders can detect the micro-strain changes associated with fatigue crack initiation well before the crack is visible. The same sensors, combined with MEMS accelerometers, provide the data needed to assess whether a structure's dynamic response has changed — a key indicator of connection loosening or section loss.

Brick masonry in these buildings is often English bond or Flemish bond in lime mortar, with compressive strength typically in the range of 1.5–3.5 MPa — significantly lower than modern brick masonry. Settlement of even 5–10 mm can open mortar joints to widths that allow water ingress, initiating a deterioration cycle that accelerates in India's monsoon climate. Early detection through precise levelling and crack monitoring is therefore directly linked to the conservation outcome.

For a systematic approach to these structures, our guide on how to monitor colonial era buildings for structural safety india covers the specific sensor configurations and data interpretation protocols relevant to pre-Independence construction typologies.

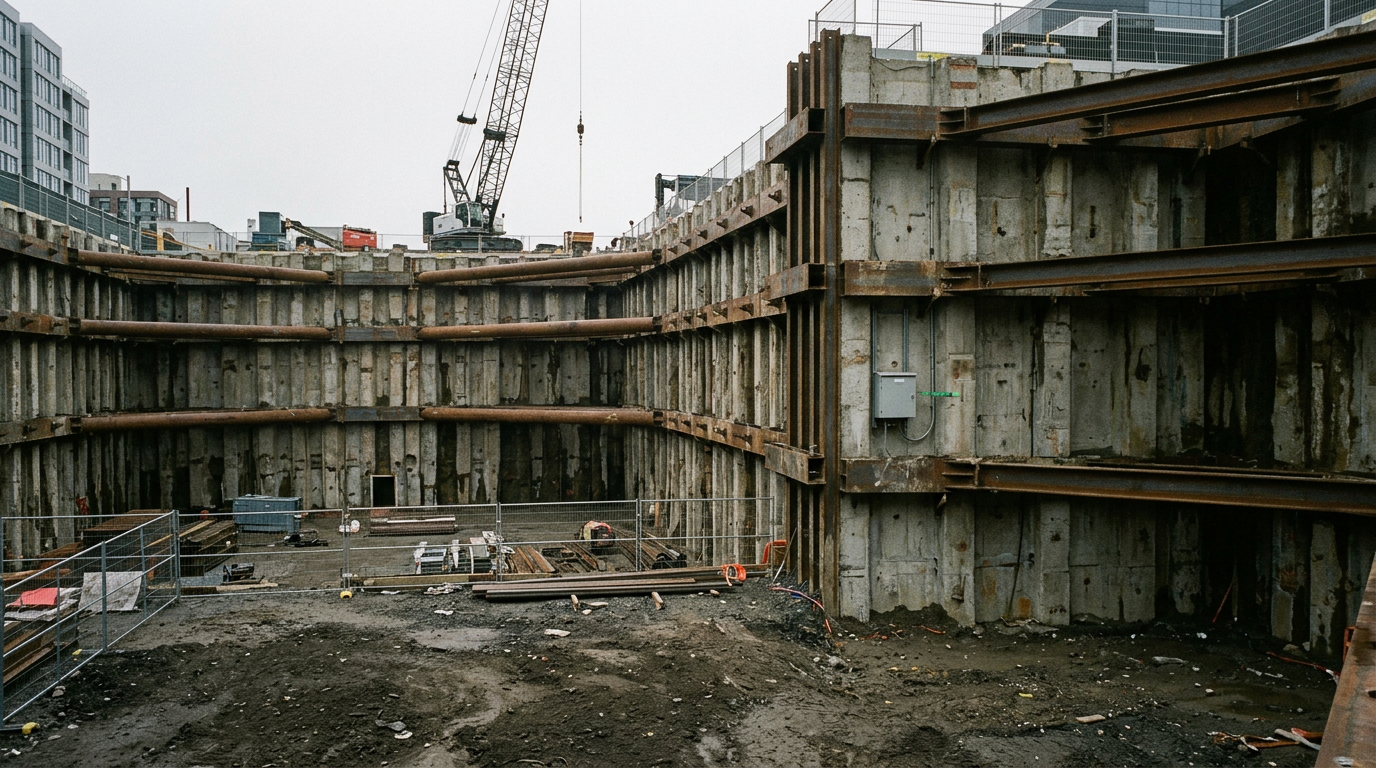

A growing proportion of heritage monitoring mandates in India arise not from conservation initiatives but from proximity to urban infrastructure development. Metro rail corridors, elevated highways, deep basement excavations, and pile-driving operations within the regulated zones of protected monuments all require the project proponent to demonstrate that their works have not caused measurable damage to the heritage structure.

This creates a monitoring obligation that sits at the intersection of heritage SHM and construction monitoring. The sensor network must be in place and generating baseline data before construction begins, must operate continuously through the construction period, and must produce a post-construction report comparing pre- and post-construction structural condition. The monitoring plan is typically submitted to the NMA or the relevant state heritage authority as part of the heritage impact assessment.

Geolook's urban infrastructure monitoring capability — demonstrated through projects including L&T Constructions Noida Realty Green, Sector-120 (integrated sensor analytics for high-rise construction) and DLF Downtown Gurgaon with B L Kashyap (DAQ for building settlement) — provides the technical foundation for this type of combined heritage and construction monitoring. The same DAQ hardware, alert logic, and cloud reporting infrastructure that manages settlement data for a high-rise basement excavation can simultaneously manage crack and vibration data for a nearby protected structure.

For ASI officials and conservation architects specifying monitoring requirements in heritage impact assessments, it is worth noting that the monitoring plan should define: the sensor types and locations, the sampling frequency, the alert thresholds, the data retention period, the reporting format, and the escalation protocol. These six elements are the minimum required for a monitoring plan to be technically defensible before a heritage authority. Explore Geolook's urban structural monitoring solutions for the full instrumentation and data management framework applicable to these projects.

Q: What is heritage building monitoring and why is it different from standard SHM?

A: Heritage building monitoring is the measurement of structural parameters — crack width, tilt, settlement, and vibration — in historically significant structures using methods that do not damage original fabric. It differs from standard SHM because ASI conservation guidelines and the AMASR Act prohibit irreversible interventions such as drilling or epoxy grouting, requiring all sensors to be surface-mounted or reversibly attached to protected masonry, stone, or timber.

Q: Which sensors are considered non-invasive for ASI-protected monuments?

A: Non-invasive historical sensors for ASI-protected monuments include vibrating wire crack meters with reversible lime-mortar pin anchors, MEMS tilt meters secured by stainless banding, FBG strain gauges bonded with reversible adhesive, triaxial MEMS accelerometers on surface clamps, and robotic total station reflective targets on adhesive discs. None of these require permanent drilling, chemical grouting, or cable chases through protected walls.

Q: What vibration limits apply to heritage masonry structures in India?

A: No single Indian Standard sets vibration limits specifically for heritage masonry, so engineers typically reference IS 2974 (Part 1): 1982 for general structural vibration guidance and DIN 4150-3 for heritage-specific thresholds. A peak particle velocity of 2 mm/s at frequencies around 10 Hz is a commonly applied precautionary limit for unreinforced historic masonry, but the conservation architect and structural engineer must confirm site-specific thresholds based on the structure's documented condition.

Q: How does monument monitoring address the 100-metre regulated zone under the AMASR Act?

A: Under the AMASR (Amendment and Validation) Act, 2010, construction within 100 metres of a centrally protected monument is prohibited, and activities within the 300-metre regulated zone require NMA approval. Monument monitoring supports this regulatory framework by providing a continuous, time-stamped structural record that demonstrates whether nearby construction has caused measurable displacement, crack propagation, or vibration exceedance — evidence required in heritage impact assessments submitted to the NMA.

Q: Can heritage SHM data be used to justify conservation intervention to ASI?

A: Yes. A well-documented heritage SHM dataset — showing crack width trends, differential settlement, and vibration history with calibrated sensor records — constitutes engineering evidence that ASI circle offices and the NMA accept as justification for conservation works. The data record should include sensor calibration certificates, installation photographs confirming non-invasive methods, and a structural engineer's interpretation report to meet the evidentiary standard expected by heritage authorities.

If you are an ASI official, conservation architect, or EPC project manager working within the regulated zone of a protected monument, the first step is a monitoring plan that satisfies both the engineering requirement and the heritage authority's non-invasive constraint. Geolook's instrumentation team can review your site conditions, propose a sensor layout, and prepare the technical documentation required for heritage impact assessments.
